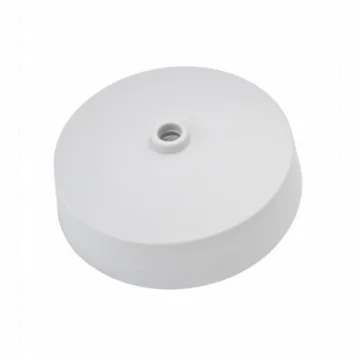

KEDBROOKE CEILING ROSE KBA6701
KEDBROOKE CEILING ROSE KBA6701 4.00AED
Back to products
KEDBROOKE 1GANG 1WAY SWITCH KBV3011
KEDBROOKE 1GANG 1WAY SWITCH KBV3011 5.00AED
Click to enlarge

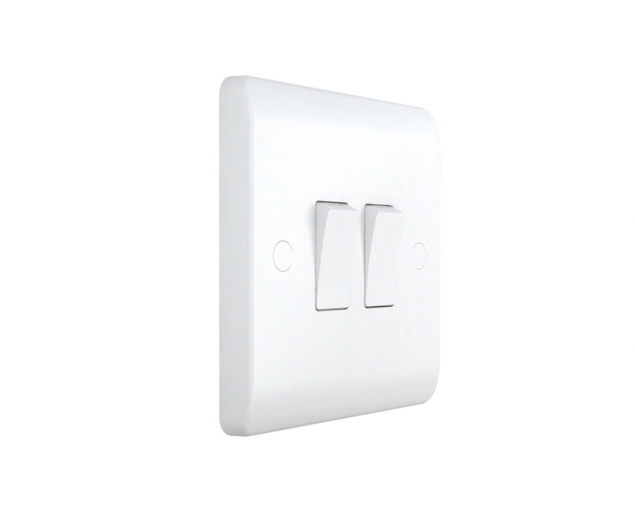

KEDBROOKE 2GANG 1WAY SWITCH KBV3021

6.00AED

Add to wishlist
Compare
14 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “KEDBROOKE 2GANG 1WAY SWITCH KBV3021”

Your email address will not be published. Required fields are marked *

Description

It seems like you’re asking about how to wire or connect the Kedbrooke 2 Gang 1 Way Switch (model KBV3021). Here’s a general guide on how to wire this type of switch:

ABOUT THE ITEM

  1. Turn Off Power: Before starting any electrical work, ensure the power is turned off at the circuit breaker to prevent electric shock.
  2. Identify Wires: You’ll typically have three wires to work with: live (brown), neutral (blue), and earth (green/yellow). These wires will be coming from your electrical supply.
  3. Switch Terminals: The Kedbrooke KBV3021 switch will have terminals labeled for these connections. Here’s a standard setup for a 1-way switch:
    • Common Terminal (COM): This is where the live wire (brown) from your electrical supply connects.
    • L1 Terminal: This is where the live wire (brown) that goes to the light or other electrical device connects.
    • Earth Terminal: Connect the earth wire (green/yellow) from your electrical supply to the earth terminal on the switch.
  4. Wiring Process:
    • Connect the live wire (brown) from your electrical supply to the COM terminal of the switch.
    • Connect another short length of brown wire (a “strapper”) between the COM terminal and one of the L1 terminals on the switch.
    • Connect the live wire (brown) that goes to your light or device to the other L1 terminal of the switch.
    • Connect the neutral wire (blue) from your electrical supply directly to the neutral terminal of the light fitting or device.
  5. Testing: After wiring, double-check all connections and tighten screws securely. Once confirmed, you can turn the power back on at the circuit breaker and test the switch to ensure it operates correctly.
  6. Secure and Close: Once tested, secure the switch into the wall box using the screws provided. Ensure the faceplate covers the switch properly.

Important Notes:

  • Always follow local electrical codes and regulations.
  • If you are unsure about any part of the installation process, consult a qualified electrician.
  • Refer to the specific instructions provided with the Kedbrooke KBV3021 switch for any manufacturer-specific details or variations.

By following these steps, you should be able to correctly wire the Kedbrooke 2 Gang 1 Way Switch (KBV3021) using the appropriate wiring points.
